Hollow Section

What is MHEL Hollow Section?

MHEL range of premium quality steel pipes are made using strips of HR (Hot-Rolled) steel, passed through forming rolls and welded into round, square & rectangular shapes and cater to multiple applications, including agriculture, industry, fabrication, PEB (Pre Engineered Building), construction, scaffolding and casing in bore wells. Their high torsional rigidity and compressive strength make them more efficient than conventional steel pipes. Our engineering processes are based on the latest techniques developed and adopted by the industry worldwide and conform to IS standards.

Read More
m

MHEL Hollow Sections Features

Smooth Edge
Better Surface Finishing
Consistent Thickness & Weight

Straight
Defect Free Seam Weld
Easy to Use/Fabricate
Wide Range - 250 + sizes

Easy Identification, Color Coding, Thickness with UNBS Marking

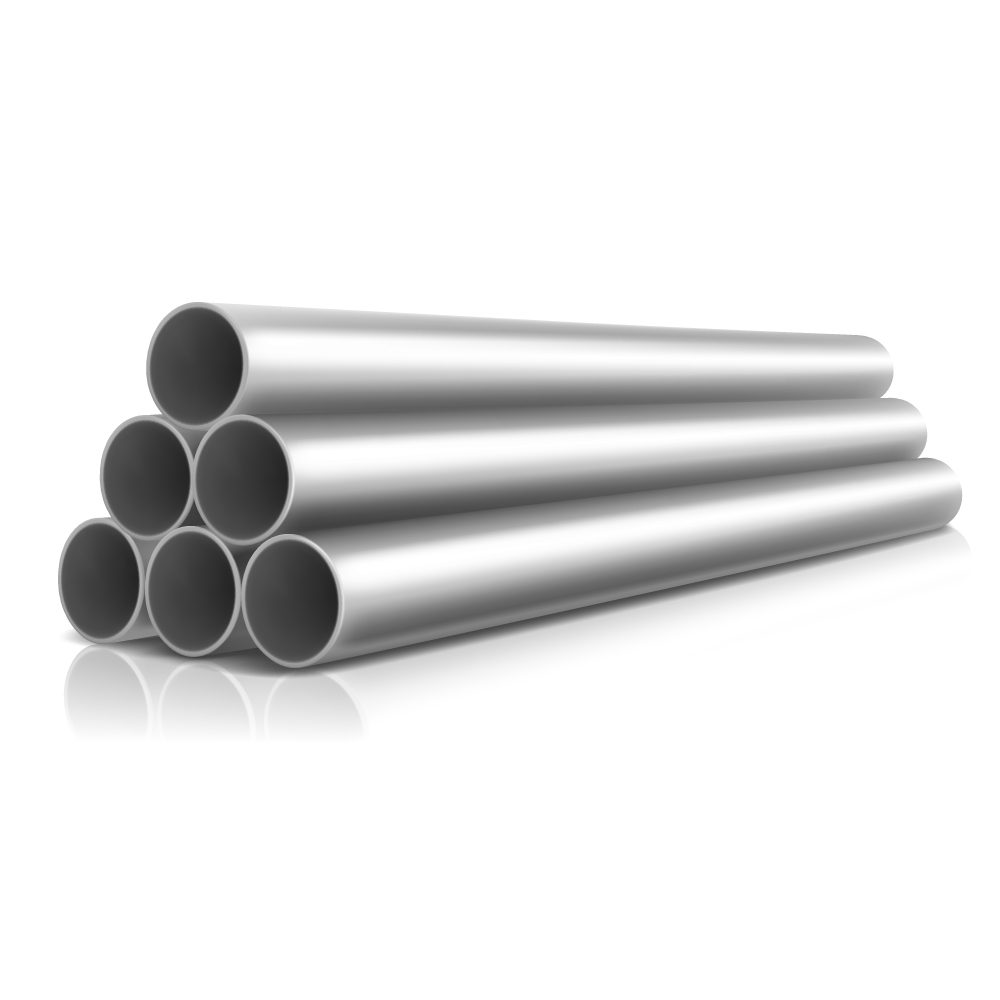

MHEL Round Pipes​

MHEL Electric Resistance Welded (ERW) pipes are manufactured by cold forming a flat steel strip into a rounded tube and passing it through a series of forming rollers to obtain a longitudinal seam. The two edges are then simultaneously heated with a high frequency current and squeezed together to form a bond. The longitudinal ERW seam does not require filler metal.

Tube Dimension (mm) Wall Thickness (mm)
Size (D) 1 1.2 1.5 2 2.8 3
15 ✔ ✔ ✔ ✔
20 ✔ ✔ ✔ ✔
25 ✔ ✔ ✔ ✔
32 ✔ ✔ ✔ ✔
48 ✔ ✔ ✔ ✔ ✔ ✔
50 ✔ ✔ ✔ ✔ ✔ ✔
65 ✔ ✔ ✔ ✔ ✔ ✔
90 ✔ ✔ ✔ ✔

Note  :  We can supply customized MHEL SDF in varying thickness from 1­2.5 mm

Applications
  • Liquid Transmission
  • Mechanical & General Engineering
  • Scaffolding
  • Water & Sewage
Finishing Operations
  • Plain End
  • Threaded
  • Cut Lengths
Surface Protection
  • Black (Self Color ed/ Uncoated)

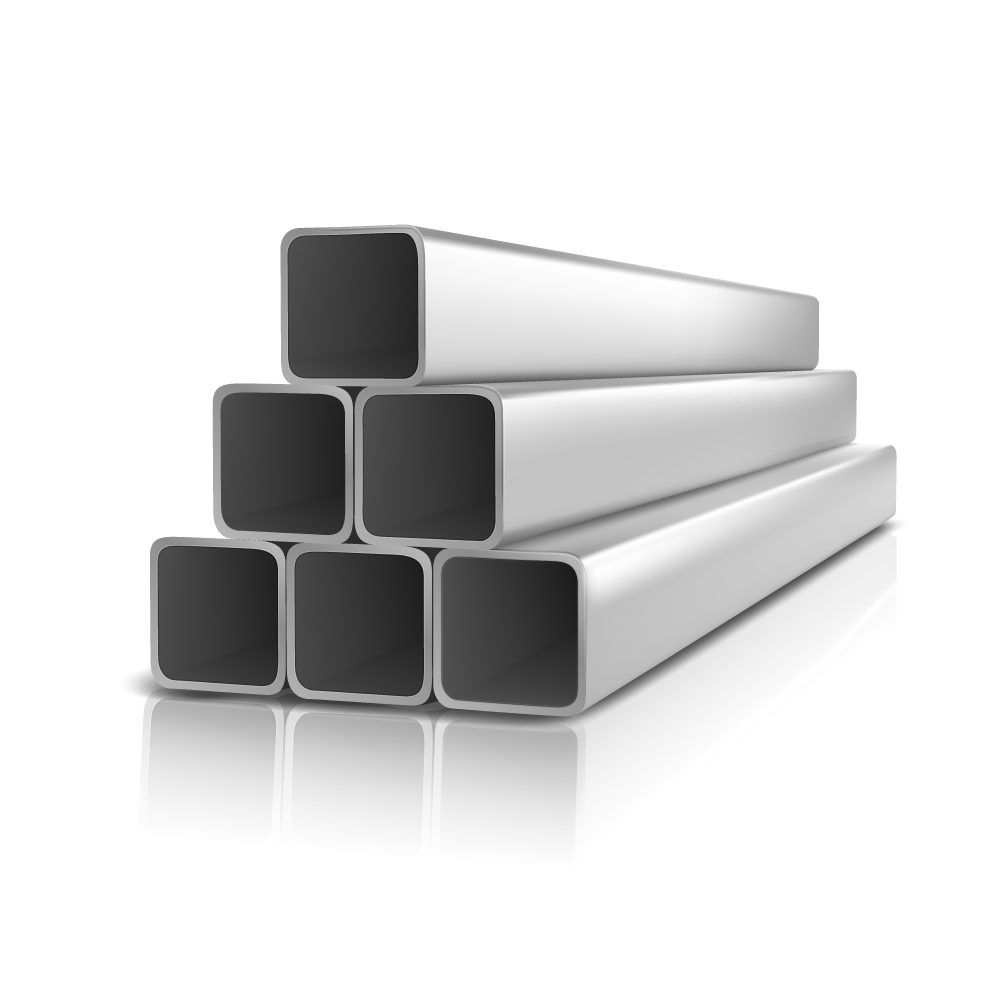

MHEL Square Hollow Section

MHEL Square Hollow Section (SHS) are high in torsional rigidity and compressive strength, square hollow sections are comparably more efficient than conventional steel sections. The excellent distribution of material around the axis of the square steel hollow sections allows for remarkable strength qualities and thus offers decisive advantages in its applications. The smooth and uniform profile of the sections minimizes corrosion and facilitates easy, onsite fabrication to significantly enhance the aesthetics of structures. A higher strength to weight ratio credits these sections with nearly 20% reduction in the use of steel.

Tube Dimension (mm) Wall Thickness (mm)
Size (D) 1 1.2 1.5 2 2.8 3
16 x 16 ✔ ✔ ✔ ✔
20 x 10 ✔ ✔ ✔ ✔
25 x 25 ✔ ✔ ✔ ✔ ✔
30 x 30 ✔ ✔ ✔ ✔ ✔
40 x 40 ✔ ✔ ✔ ✔ ✔ ✔
50 x 50 ✔ ✔ ✔ ✔ ✔ ✔
60 x 60 ✔ ✔ ✔ ✔
72 x 72 ✔ ✔ ✔ ✔

Note  :  We can supply customized MHEL SDF in varying thickness from 1­2.5 mm

Applications
  • Automobiles
  • Cycle Parts
  • Domestic Applications
  • Furniture Industries
  • Fencing

MHEL Rectangular Hollow Section

MHEL Rectangular Hollow Sections (RHS) are ideal for a wide variety of residential, industrial, agricultural or commercial applications. RHS Tubes are very popular in construction and other manufacturing applications such as automotive and storage due to its strength, economy and simplicity to use compared to the other variants. Its smooth flat surfaces can make construction easier. They come in a variety of sizes which can also be cut to your required sizes.

Tube Dimension (mm) Wall Thickness (mm)
Size (D) 1 1.2 1.5 2 2.5 2.8 3
30 x 20 ✔ ✔ ✔ ✔ ✔
40 x 20 ✔ ✔ ✔ ✔ ✔ ✔
50 x 25 ✔ ✔ ✔ ✔ ✔ ✔
50 x 30 ✔ ✔ ✔ ✔ ✔ ✔ ✔
60 x 30 ✔ ✔ ✔ ✔ ✔ ✔ ✔
60 x 40 ✔ ✔ ✔ ✔ ✔ ✔ ✔
80 x 40 ✔ ✔ ✔ ✔ ✔
96 x 48 ✔ ✔ ✔ ✔ ✔

Note  :  We can supply customized MHEL SDF in varying thickness from 1­2.5 mm

Applications
  • Fence Posts
  • Rails
  • Bearings for flooring
  • Decking
  • Bridges
  • Houses and a myriad of other construction options
